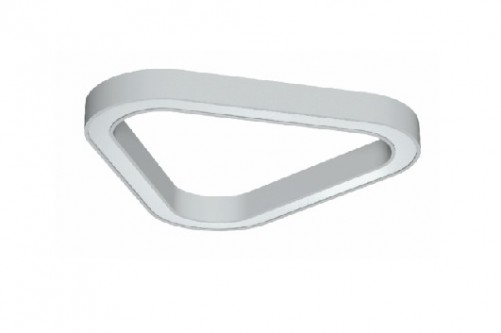

MERAPI 80

Design LED luminaire designed for representative spaces, can be surface mounted or suspended.

LED Light Electric Diode
Způsob připojení (svorkovnice) Connection method: terminal board
Regulace DALI DALI regulation
Elektrický zdroj (EVG) Power Supply
Funkce koridor (CORRIDOR) Corridor function
Distribuce světla (přímá) Light distribution: direct
Montáž přisazením Surface mounting
Montáž zavěšením Suspension mounting
Montáž na hořlavé podklady Mounting on flammable substrates
Stupeň krytí (40) Degree of protection
Zjistit více ikonka Learn more about the product

Specifications

Electrical parameters

Light source LED
Power voltage AC 230 V / 50 Hz
Connection method terminal block
Ballast part electronic driver
Possibility of regulation non-dimmable (not labeled), DALI (DALI), corridor function (EPS-C)
Emergency module NO

Light parameters

Optical system diffuser
Light distribution direct (D), direct + indirect (DI1), direct + indirect (DI2)
Colour rendering index Ra > 80
Colour temperature 3 000 K, 4 000 K
Lifetime > 70 000 hours (L80B10)

Construction

Luminaire body powder-coated steel sheet
Colour RAL 9003, other RAL (on request)
Surface type matt
Luminaire cover microprisma (DMPP), satin opál (DSO), opal (DPO)

Safety

Protection class I
Maximum ambient temperature +5 / +35 °C
Protection of the luminaire's electrical part IP 40
Protection of the luminaire's optical part IP 40
Fire risk  YES

Mounting

Method suspension
Recommended height max up to 5 m

Accessories

Buckles NO
Suspension accessories lankový závěs
Use classrooms, corridors, office, komerční prostory
