GALAXY

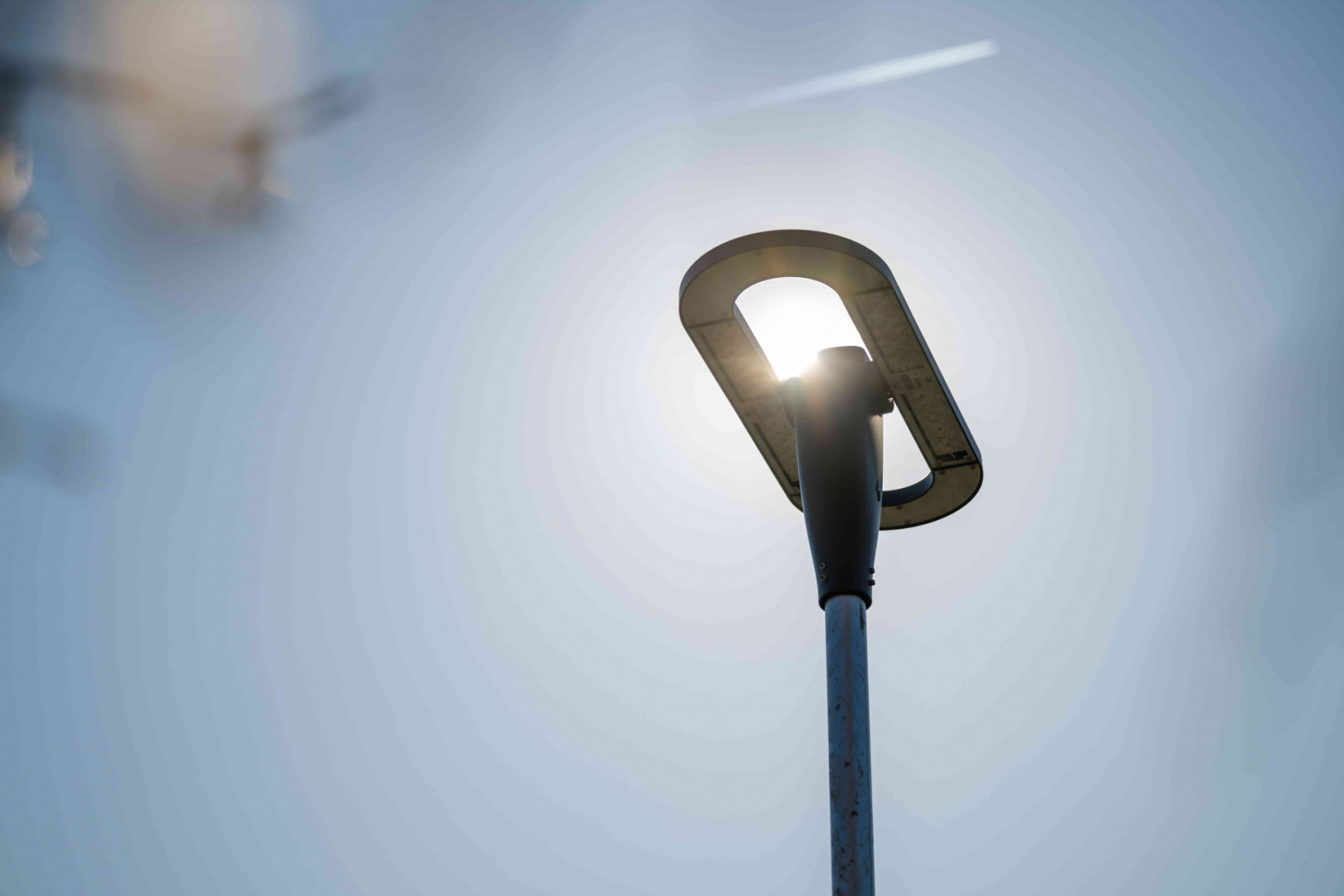

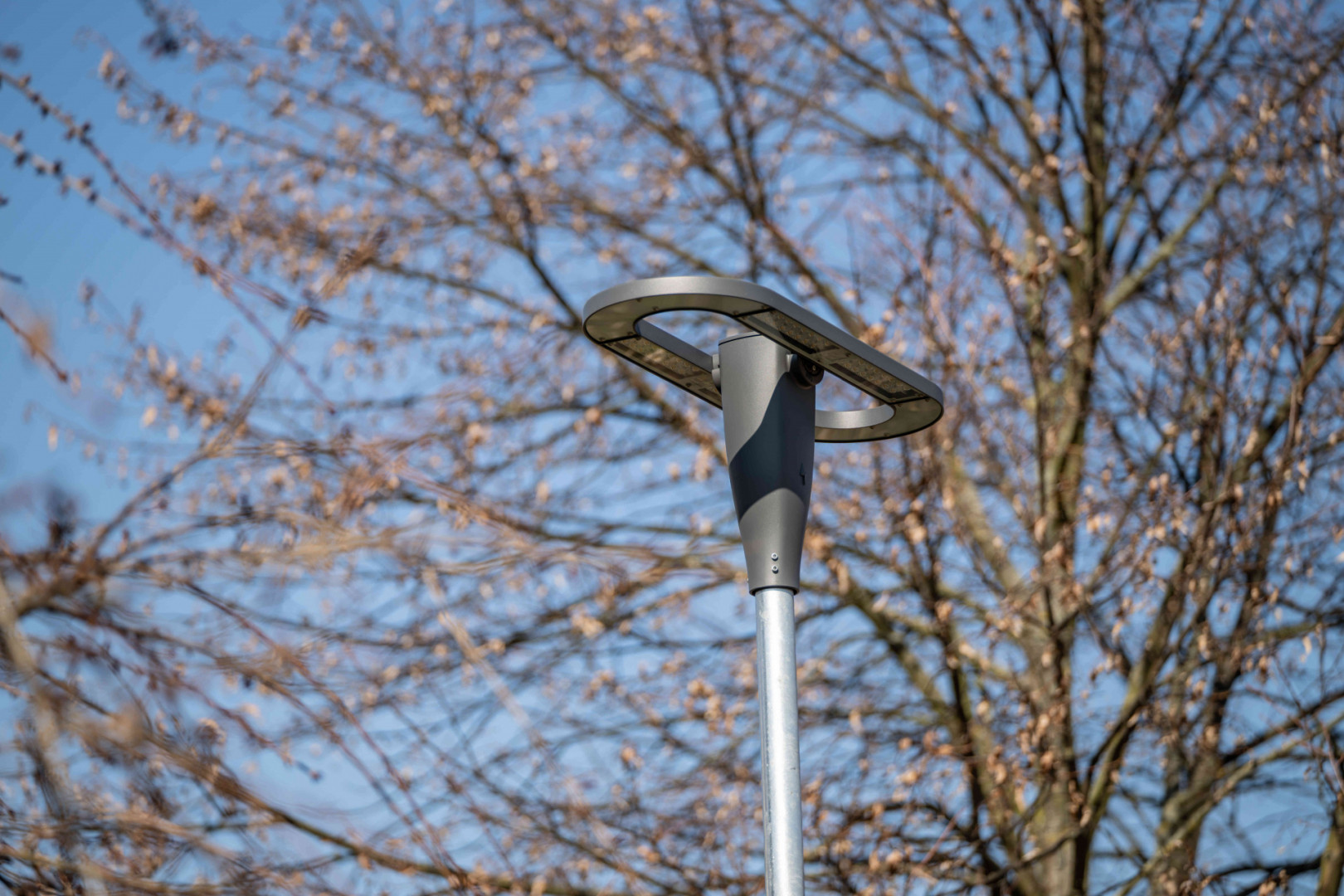

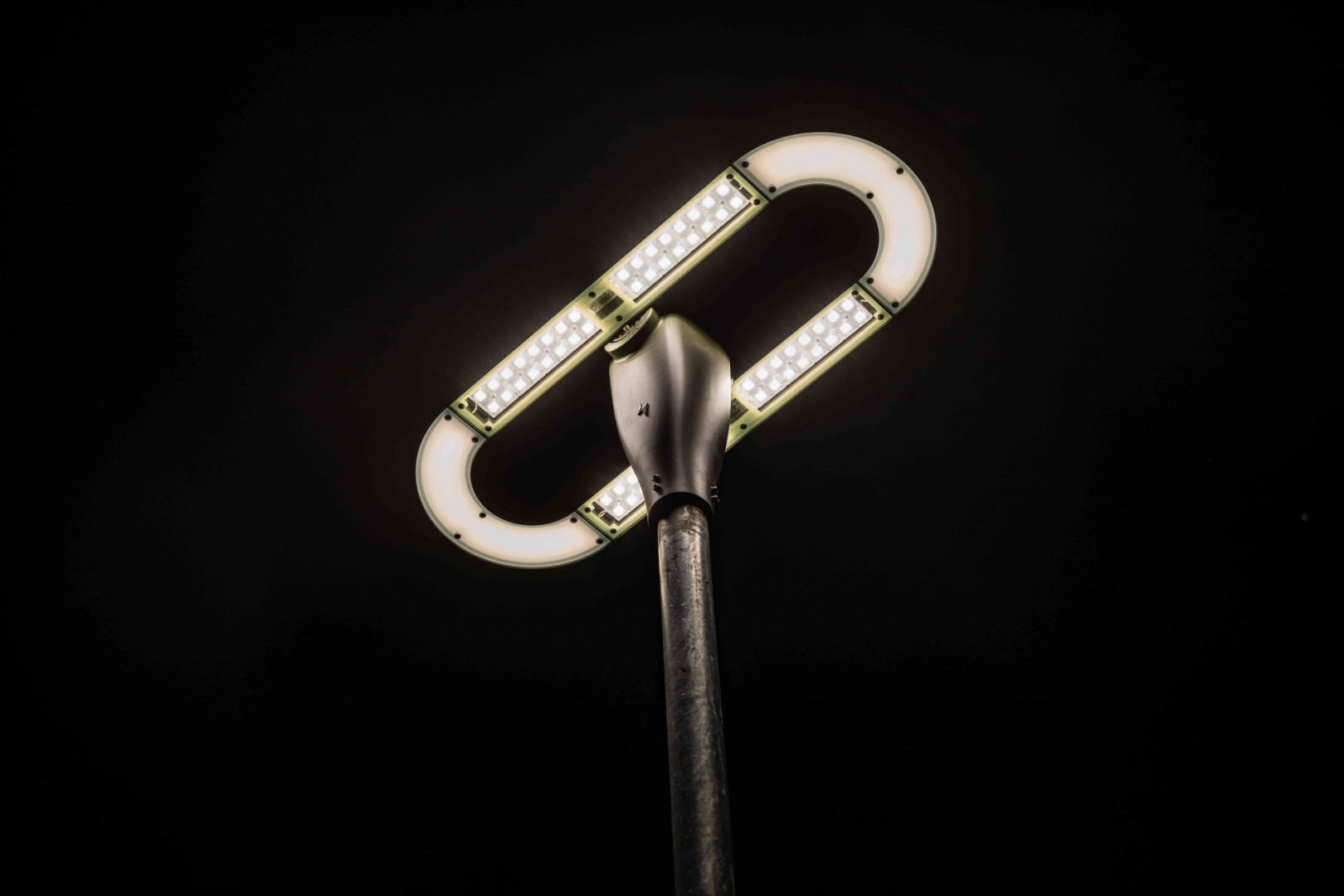

Attractive and modern designer LED luminary intended for urban neighbourhoods and residential quarters.

Learn more about the product

GALAXY

Specifications

Electrical parameters

Light source	LED
Power voltage	AC 220–240 V / 50–60 Hz
Connection method	leading out cable, leading out cable with connector (G)
Ballast part	electronic driver with surge protection L/N-Ground 10 kV
Surge protection	additional surge protection 10 kV (S)
Fuse	fuse 6,3 A (J)
Possibility of regulation	non-dimmable (not labeled), DALI (DALI), night dimming (A) preparation for wireless communication NEMA (N), Zhaga (Z)
Constant lumen output	CLO (C)

Light parameters

Optical system	roads (Mxx), roads (Lxx), directional (Pxx) area (Uxx), combined optics (Kxx)
Light distribution	direct
Colour rendering index	Ra > 70, Ra > 80
Colour temperature	2,200 K / 2,700 K / 3,000 K / 4,000 K / 5,000 K
Service life	> 100,000 hrs. (L90B10)

Construction

Luminaire body	aluminum cast
Variant design of the lamp	center position of the column (S4) » offset position of the column (A4)
Colour	RAL 7015
Surface type	matte
Luminaire cover	tempered glass

Safety

Protection class	I, II
Maximum ambient temperature	-40 / 55 °C
Ingness protection	IP 66
Impact protection	IK 08

Mounting

Method	pole mounted (48–67 mm) adjustable joint ± 20°
Recommended height	max. up to 8 m
Use	bike path, outdoor areas, pedestrian zones, sidewalks; road classes II. and III.
