Back to product catalogue

DURGA G2

Anti-vandal LED luminaire designed for areas with a high risk of damage.

Regulace DALI DALI regulation
Mechanická odolnost (IK10) Mechanical resistance
Stupeň krytí (IP65) Degree of protection
Zjistit více ikonka Learn more about the product

Specifications

Electrical parameters

Light source LED
Power voltage AC 230 V / 50 Hz
Connection method terminal block (supplied without cable)
Ballast part electronic driver with integrated surge protection
Possibility of regulation without regulation (not labeled), DALI (4),astrodim (A)
Emergency module NO

Light parameters

Optical system diffuser
Light distribution direct
Colour rendering index Ra > 70, Ra > 80
Colour temperature » 2 700 K » 3 000 K » 4 000 K
Service life > > 100 000 hod. (L90B10)

Construction

Luminaire body powder-coated steel sheet
Colour RAL 7016, other RAL (on request), exterior finish (V)
Surface type gloss
Luminaire cover glass diffuser, opal (DPO)

Safety

Protection class I, II
Maximum ambient temperature -30 / +40 °C
Protection of the luminaire's electrical part IP 65
Protection of the luminaire's optical part IP 65
Mounting on normally flammable surfaces YES
Shock resistance IK 10

Mounting

Method surface mounted, corner mounted
Recommended height from 2 to 6 m

Accessories

Clips NO
Suspension accessories corner fixing (on request)
Notes Luminaire is equipped with security screws are for protection against theft
Use garages, jails, passages, pedestrian, underpasses

Variants

Optical and electrical parameters tolerance ± 10 %

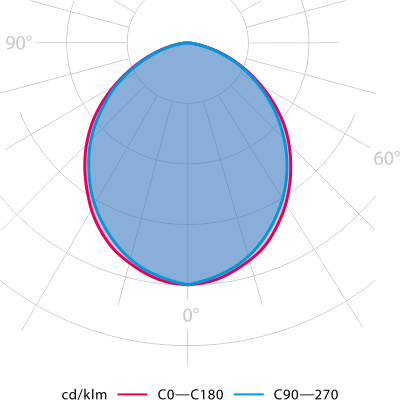

Photometry

Photometry

Energy label

Energy label

Files for download

Inquiry form
