MARUT S/L G2 ZL/ZP

Modern outdoor LED luminaire for public lighting with integrated overvoltage protection and adjustable joint ± 15° designed for lighting pedestrian crossings.

CB Scheme Certification
Regulace DALI DALI regulation
Mechanická odolnost (IK9) Mechanical resistance
Stupeň krytí (IP66) Degree of protection
EMC Electromagnetic compatibility
Vibrace Vibration
ENEC+
ENEC
ZHAGA
Zjistit více ikonka Learn more about the product
Název obrázku Název obrázku
Zjistit více ikonka Learn more about the product
MARUT S/L G2 ZL/ZP

Specifications

Electrical parameters

Light source LED
Power voltage AC 220–240 V / 50–60 Hz
Connection method leading out cable, leading out cable with connector (G), without cable (WO)
Ballast part electronic driver with surge protection L/N-Ground 10 kV
Surge protection additional surge protection 10 kV (S)
Fuse fuse 6,3 A (J)
Possibility of regulation non-dimmable (not labeled), DALI (DALI), night dimming (A)
preparation for wireless communication NEMA (N), Zhaga (Z)
Constant lumen output CLO (C)

Light parameters

Optical system pedastrian crossing (ZLx/ZPx)
Light distribution direct
Colour rendering index Ra > 70, Ra > 80
Colour temperature 4,000 K / 5,000 K
Service life > 100,000 hrs. (L90B10)

Construction

Luminaire body aluminum cast
Colour RAL 7015/9006
Surface type matte
Luminaire cover tempered glass

Safety

Protection class I, II
Maximum ambient temperature -40 / 55 °C
Protection of the luminaire's electrical part IP 66
Protection of the luminaire's optical part IP 66
Mechanical durability IK 09 (EN 62262:2002)
EMC EN 55015:2013 + A1:2015 / EN 61547:2009
EN 61000-3-2:2019 / EN 61000-3-3:2013 + A1:2019
EN 61000-4-5:2014 + A1:2018
EN 62493:2015
Vibration test EN 60598-1:2015 + A1:2019 art. 4.20 (EN 60068-2-6)
Corrosion test – Salty spray EN ISO 9227:2017 (1 000 hours)
Certification ENEC, ENEC+, Zhaga-D4i, IDA Dark Sky Approved
CB mark YES

Mounting

Method pole or boom mounted (48–60 mm); 60–76 mm (on request)
adjustable joint ± 15°
Recommended height max. up to 8/12 m
Use pedestrian crossing

Variants

Variants

* Weight may vary depending on the luminaire variant
Luminaire ambient temperature TQ 25 °C
Initial color consistency: ≤ 5 SDCM
IDA Dark Sky fixture seal of approval relates to ≤ 3 000 K
To meet IDA requirements, the luminaires must be installed horizontally with the road
Optical and electrical parameters tolerance ± 10 %

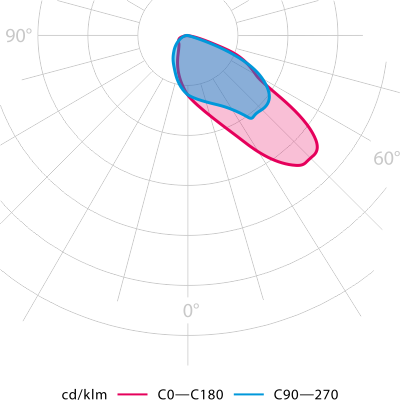

Photometry

Photometry

Energy label

Energy label

Files for download

Datasheet Installation manual Eulumdata EU DoC AstroDIM
